Freemax coils are the replaceable heads that sit inside a Freemax tank or pod and turn e-liquid into vapour. Most of the range runs on mesh rather than round wire, which spreads the heat over a wider surface for faster, cleaner flavour.
Two materials do the heavy lifting: military-grade SS904L mesh and Freemax's tea fibre cotton wicking. That pairing is what the brand built its name on, and it is why Fireluke coils became a flavour benchmark.
These are mostly sub-ohm heads built for direct-to-lung clouds, though the range stretches up to tighter pod coils for restricted draws. They are consumables. When the taste flattens, or a burnt note creeps in, you change the head, not the whole device.
Which Freemax Coil Fits Your Device?
This is the part that matters most. Freemax runs several coil platforms, and they do not all interchange, so the head that fits a Fireluke will not drop into an M Pro.
Here is how the main families break down. Check the base of your tank or pod for the model name if you are unsure.
#table
Coil family: Fits these Freemax devices: Common resistances
904L X Mesh (X1/X2/X3/X4): Fireluke M, Fireluke 2, 3 and 4, Maxluke, Twister 2: X1 0.15Ω, X2 0.2Ω, X2 0.5Ω, X3 0.15Ω, X4 0.15Ω

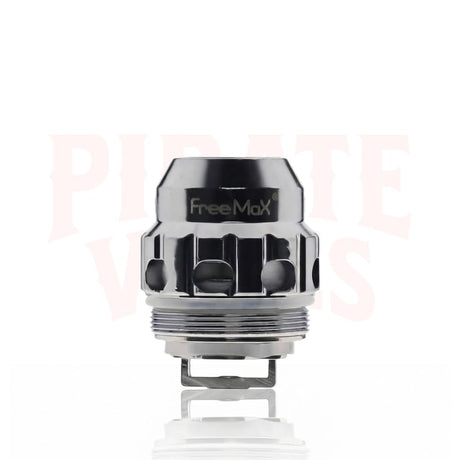

TX Mesh (TX1/TX2/TX3/TX4): Fireluke M, 2, 3 and 4 tanks: roughly 0.12Ω to 0.5Ω
904L M Mesh (M1/M2/M3/M4, M1-D): M Pro, M Pro 2, M Pro 3 tanks: M1 0.15Ω, M2 0.2Ω and up
MX Mesh (MX1/MX2/MX3, MX1 SS316L): Maxus DTL Pod, Maxus Max, Marvos X: 0.12Ω, 0.15Ω, 0.2Ω
MS Mesh / MS-D: Marvos pod systems: 0.15Ω to 0.5Ω
FL Mesh (FL1-D/FL2/FL3): Fireluke Solo tank: 0.15Ω, 0.2Ω

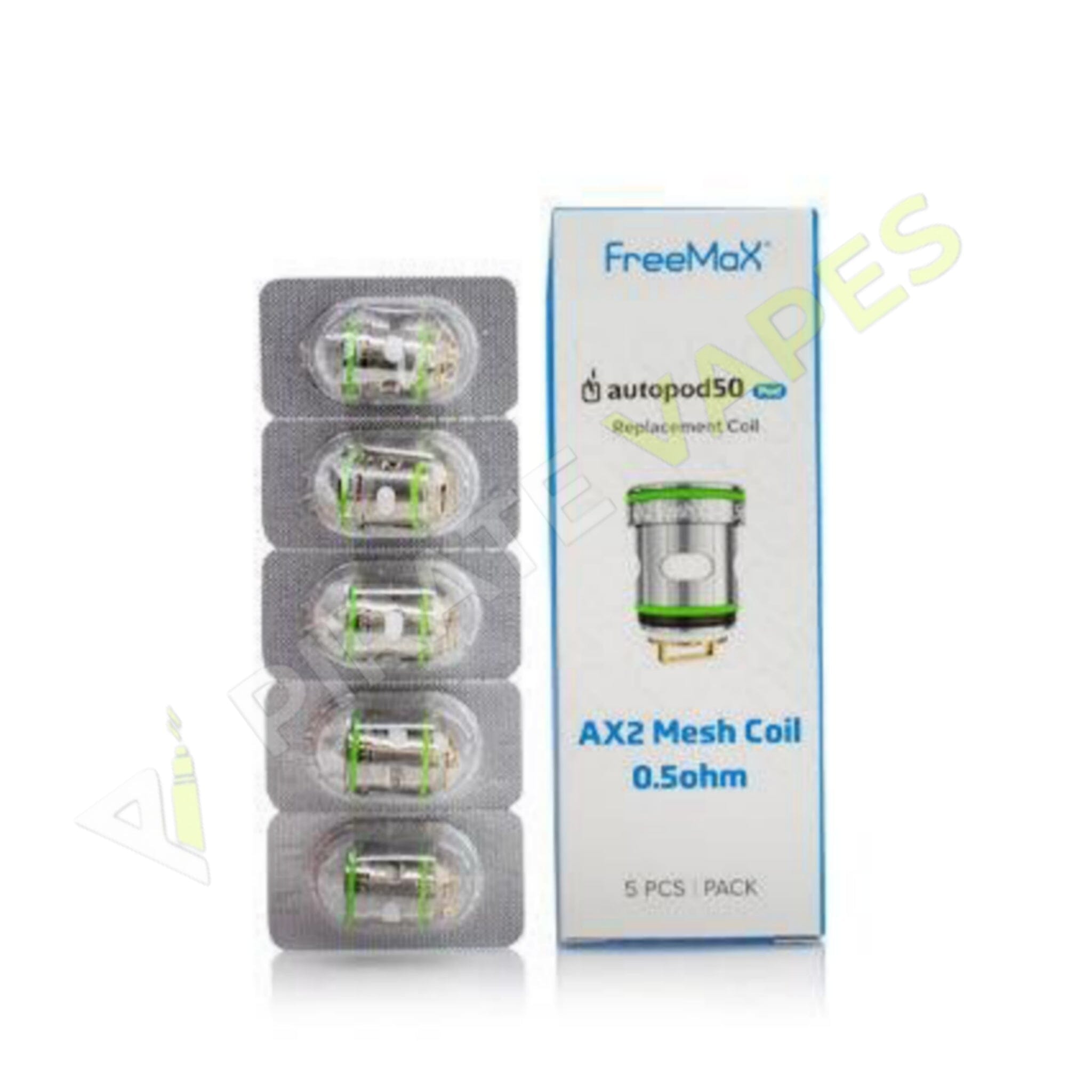

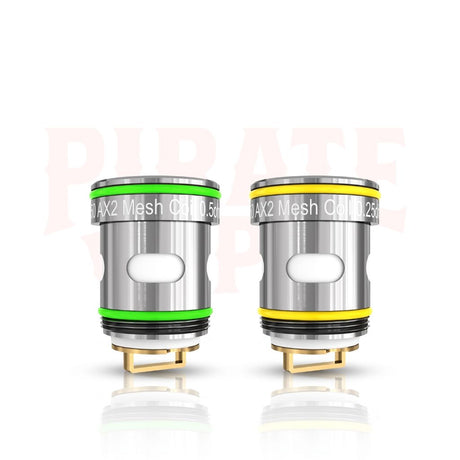

Autopod50 coils: Freemax Autopod50: 0.25Ω, 0.5Ω
There are pod-specific families too- GX heads for the Galex pod and ST heads for the Starlux pod, both aimed at MTL and restricted DTL. Whichever platform you run, the live grid shows exactly which resistances are stocked right now.
These sub-ohm heads live inside DTL tanks, so if you are building a setup from scratch rather than replacing a spent coil, start with the tank and work back to the matching head.
What Wattage and Resistance Should You Choose?
Every Freemax coil carries a rating on the side and a sweet spot inside it. Run it near the top of its range for warmer, cloudier draws, or lower for a cooler, more measured vape that stretches coil life.
The flagship 904L X range that feeds the Fireluke tanks is a useful reference point.
#table
Coil: Mesh: Wattage range: Best around
X1 0.15Ω: Single: 40W to 80W: 70W
X2 0.2Ω: Dual: 40W to 80W: 70W
X2 0.5Ω: Dual: 20W to 50W: 45W
X3 0.15Ω: Triple: 50W to 90W: 80W
X4 0.15Ω: Quad: 40W to 80W: 70W
Lower resistance wants more power. The 0.5Ω X2 is the odd one out, tuned for a gentler 20W to 50W, which suits vapers stepping down from big clouds. Start at the low end of any coil's range, then climb until the flavour lands where you want it.
Which E-Liquid Suits a Sub-Ohm Freemax Coil?
Sub-ohm Freemax coils are built for thicker, high-VG e-liquid. A 70/30 blend or higher wicks properly through the mesh and produces the vapour these coils are designed for.
High VG e-liquid shortfills are the usual match. They come nicotine-free at 0mg, so you add a nicotine shot if you want strength, staying inside the legal 20mg per ml ceiling.
Thin 50/50 nic salts are the wrong pick for a 0.15Ω head. At sub-ohm resistance, 20mg salt is genuinely harsh, and the thinner liquid can wick too fast and flood the coil. Nicotine is addictive, so choose a strength that matches how you actually vape.
The tighter pod and MTL coils in the range are the exception. Those handle 50/50 liquids and salts comfortably at low wattage.
How Do You Fit and Prime a New Coil?
Fitting a Freemax coil takes a couple of minutes. Some screw in and some press in, so check which your platform uses before you start.
- Drain the tank if you are changing a used coil, then unscrew the base or lift the pod free.
- Remove the old head. Threaded coils turn out anticlockwise; press-fit heads like the MX platform pull straight out.
- Prime the new coil. Drip e-liquid onto each exposed cotton port until it looks saturated, usually four or five drops.
- Fit the fresh head, screwing to finger-tight or clicking it fully home. Do not force it.
- Reassemble, fill the tank, and leave it standing for ten minutes so the cotton soaks right through.
- Take two or three gentle draws without firing, then start at low wattage and build up.
Rushing that last step is how coils get ruined on day one. If you are new to swapping heads, the vaping guides walk through the whole process.
Why Does a Freemax Coil Taste Burnt?
A burnt Freemax coil nearly always comes down to priming, or the lack of it. Fire a dry coil once, and the cotton scorches, and no amount of soaking brings it back.
Chain vaping is the next culprit. Mesh coils pull a lot of liquid at high wattage, and drawing faster than the cotton can refill gives you a dry hit. Leave a few seconds between pulls at high power.
Sweet, dark e-liquids shorten coil life too. The sugars caramelise on the mesh and gunk it up, which tastes scorched long before the coil is truly spent.
One more thing worth ruling out: if the vape is leaking or the glass has cracked, that is a hardware fix, not a coil one, and replacement tank glass sorts it.
Are Freemax Coils Legal to Buy in the UK?
Yes, and they sit on the right side of the rules by design. Since single-use disposables were banned from sale on 1 June 2025, the legal route is a reusable device: a rechargeable battery, a refillable container and a replaceable coil.
A Freemax head is exactly that last part. Buy the coil, keep the tank, and refill from a separate bottle capped at 10ml and 20mg per ml.
Worth being straight about it: compliant is not the same as safe, and none of this is a health claim. It simply means the hardware meets the current UK framework, and every coil here is genuine UK-market Freemax stock.
Related Collections
Running a different brand of tank? We stock replacement heads across the major makers.
Or browse the full vape coils index if you want everything in one place.
Why Buy Freemax Coils From Pirate Vapes?
Pirate Vapes keeps the Freemax coil range in genuine UK-market stock, so the head you order is the head you get, matched to the device it was made for.
Order before 4 pm on a weekday and it ships the same day. Spend over £40 and delivery is free with Free Pirate Post, and every checkout is age-verified.
If you get through coils regularly, buying in multipacks brings the per-coil price down, and The Crow's Nest subscription keeps spares arriving without you having to reorder.
Browse the full Freemax coil range at Pirate Vapes and keep your tank tasting as it should.
