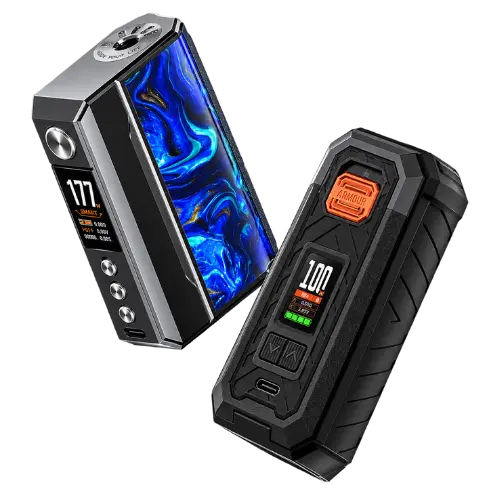

A box mod is the battery unit of an advanced setup, named for its boxy shape. It supplies the power, while a separate tank or atomiser screws onto the 510 thread on top and does the vaping.
Nearly every mod here is regulated, which means a chipset sits between the battery and the coil. That chip lets you set the wattage, reads the coil resistance, and runs protections against short circuits, over-discharge and overheating.
This is what separates a modern box mod from the old mechanical mods. You get a screen, adjustable output and safety cut-offs, rather than raw, unregulated battery power.
Who Are Box Mods For?
Box mods suit vapers who want cloud, flavour and control in equal measure. If you run a sub-ohm tank for direct-to-lung clouds, or you build your own coils on an RTA or RDA, a box mod is the tool for the job.
They also reward tinkerers. Adjustable wattage, temperature control and custom curves let you dial a coil in exactly how you like it, which a sealed pod kit will not do.
They are less suited to someone who wants pocketable simplicity. If you vape mouth-to-lung, want minimal fuss, or are stepping up from disposables for the first time, a smaller pod kit is usually the easier starting point.
What Can You Adjust on a Box Mod?
Control is the whole point of a box mod. The exact features vary by chipset, but most regulated mods share the same core options.
- Variable wattage: Set the power to match your coil, which is the setting most vapers live in.
- Temperature control: Caps the coil temperature with compatible wire to avoid dry, hot hits.
- Curves and modes: Ramp the power across a puff, or switch to a bypass mode that mimics a mechanical feel.
- Lock and safety: Button locks and cut-offs stop misfires in a pocket or bag.
Start with variable wattage and the coil's printed range. The rest is there when you want to explore it, not a barrier to getting going.
Single, Dual or Triple Battery: Which Box Mod Suits You?
Battery layout decides a mod's size, power ceiling and runtime. More cells mean more wattage and longer between charges, at the cost of bulk and weight.
#table
Setup: Typical cells: What it suits
Single-battery mod: One 18650 or 21700: Lighter and pocketable, moderate power
Dual-battery mod: Two 18650 or 21700: Higher wattage and long runtime, the popular DTL choice
Triple or quad mod: Three or four cells: Very high wattage and big all-day life, larger and heavier
Built-in battery mod: Internal cell, USB-C charged: No cell handling, fixed capacity
Most DTL vapers land on a dual-battery mod as the balance of power and portability. If you would rather not handle loose cells at all, a built-in battery mod charges over USB like a phone.
What Tank Should You Use With a Box Mod?
Any 510-threaded tank will screw onto a box mod, which is the beauty of the format. What you pair it with depends on how you vape.
For clouds and warm, airy draws, a sub-ohm tank is the natural match. Browse our sub-ohm DTL tanks for coils built to run at higher wattage.
You are not locked into clouds, though. Plenty of vapers run a restricted tank on a box mod for flavour, and the wider vape tanks range covers both styles. Keep spare vape coils for whichever tank you choose, since higher wattage burns through them faster.
What E-Liquid Works Best in a Box Mod?
Sub-ohm vaping at higher wattage suits thicker, higher-VG liquid. It produces more vapour and stands up to the heat better than a thin 50/50 blend.
That points you towards shortfills and high-VG e-liquid, which are made for cloud-focused coils. Because these bottles hold more than 10ml, they are nicotine-free, and you add a nic shot separately if you want strength.
Keep the nicotine low. High wattage delivers far more per puff, so 3mg or 6mg is comfortable in a sub-ohm setup, where 20mg would be harsh. Match the strength to the power, not out of habit.
Are Box Mods Better Than Pod Kits?
Neither is better outright. They answer different questions, and the right pick depends on how you want to vape.
#table
: Box mod: Pod kit
Power: High and adjustable: Lower, often automatic
Batteries: Frequently removable cells: Usually built-in
Tank: Any 510 tank you choose: Fixed pod system
Best for: DTL, clouds, tinkering: Simplicity, MTL, portability
Learning curve: Steeper: Minimal
Choose a box mod if you want power, battery life, and the freedom to swap tanks. If you would rather keep things small and simple, a pod kit is the sensible call, and our pod kits range covers those.
How Do You Set Up and Stay Safe With a Box Mod?
Setup is quick, and the regulated chip does the hard safety work. The two habits worth forming are priming coils and looking after your batteries.
- Fit the batteries the right way round, matching the plus and minus marks, or charge a built-in mod over USB-C first.
- Screw on your 510 tank, drop a little e-liquid onto the new coil, fill the tank, and leave it a few minutes to soak.
- Set the wattage to the range printed on the coil, then start at the lower end.
- Take a few gentle draws and step the power up until the draw feels right.
Battery care matters most on external-cell mods, so a few basics go a long way:
- Use only cells rated for your mod, from genuine stock, with the wraps intact.
- On a dual or triple mod, keep the cells as a matched set: bought together, charged together, and never mixed old with new.
- Do not carry loose batteries with keys or coins, and charge on a proper charger or the mod's own USB port.
Are Box Mods Legal in the UK?
Yes. A box mod is a reusable, rechargeable device with a replaceable coil and a refillable tank, which is exactly the format UK rules are built around. It was never caught by the single-use disposables ban that took effect on 1 June 2025.
The mod itself holds no nicotine, so the liquid limits do not apply to the hardware. Those caps sit on what you put in the tank: a nicotine tank up to 2ml, nicotine refill bottles up to 10ml, and strength up to 20mg, with larger shortfills sold at 0mg.
External batteries are legal to buy and use here, and everything is sold to adults only with age verified at checkout. Compliant is not the same as safe, and these devices are for over-18 vapers.
