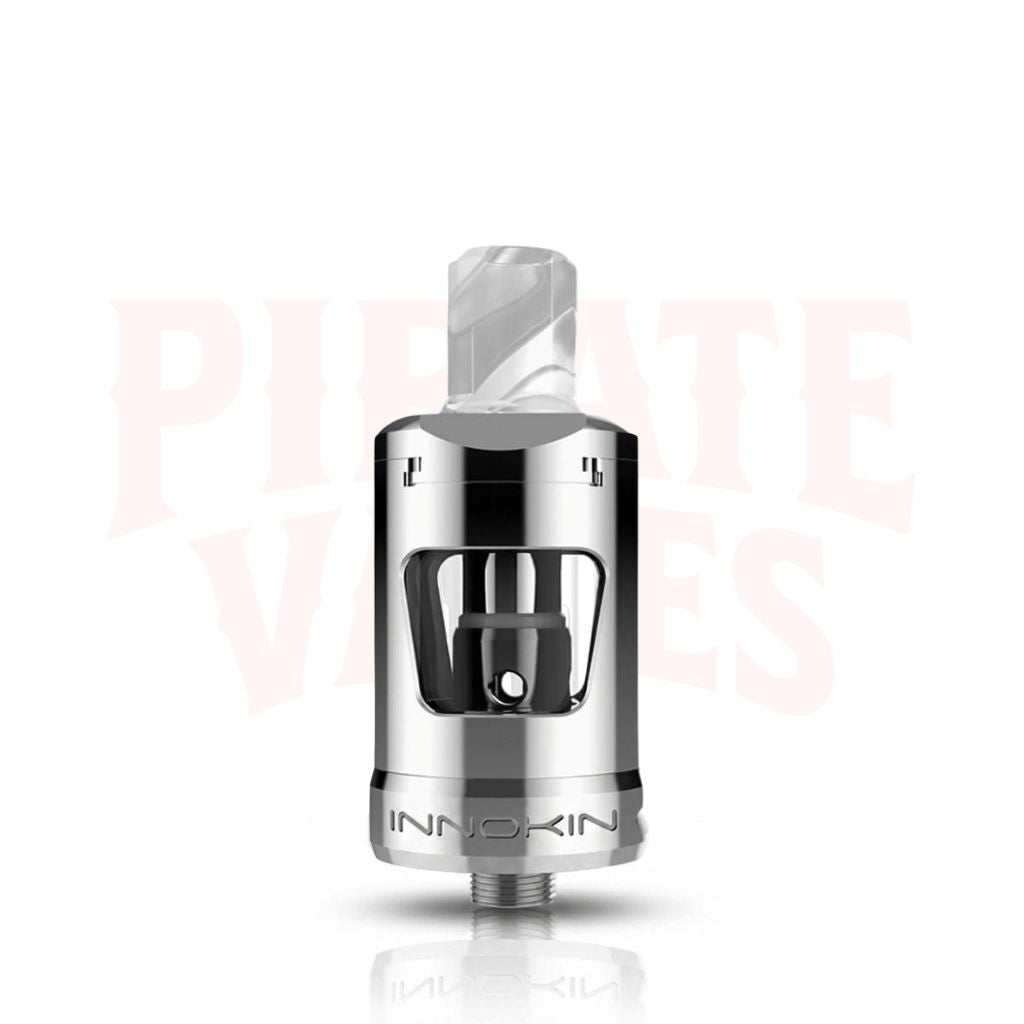

Innokin Zlide Replacement Tank

22mm MTL tank with a child-proof sliding top fill, Pyrex glass, stainless steel construction, and compatibility with the full Innokin Z coil range. The Zlide holds 2ml, takes a 0.48Ω Plex3D mesh coil and a 1.6Ω Kanthal coil (both included), and lets you change coils without emptying the tank.

Designed in collaboration with vape reviewers Phil Busardo and Dimitris Agrafiotis to deliver clean MTL flavour in a compact, affordable package. Thread it onto any 510 mod, and it runs. Pirate Vapes ships the Zlide tracked with age-verified UK delivery.

Why do vapers choose this:

• Coil changes without opening the tank. The Zlide lets you unscrew the old coil from the base and screw the new one in without removing the top cap, without draining the e-liquid, and without making a mess. It is one of the cleanest coil-swap systems on any MTL Tank.

• Child-proof sliding top fill. The mouthpiece has to be removed before the top cap will slide open. With the mouthpiece in place, the cap is locked shut. It is a genuine child-proofing mechanism, not just a stiff top cap. For households with children, this matters.

• Full Innokin Z coil compatibility. The Zlide takes every coil in the Innokin Zenith Z coil range. That is a large selection: 0.3Ω, 0.48Ω, 0.5Ω, 0.8Ω, 1.0Ω, 1.2Ω, and 1.6Ω. You can fine-tune your vaping style from tight MTL to restricted DTL without changing the tank.

• Plex3D mesh coil included. The 0.48Ω mesh coil uses a three-dimensional mesh pattern that increases surface area for more even heating, better flavour extraction, and longer coil life compared to standard round-wire coils.

• Designed with Phil Busardo and Dimitris Agrafiotis. The Zlide was a collaboration between Innokin and two of the most respected independent vape reviewers. It was built to be a more affordable alternative to the Zenith tank while keeping the same coil system and core performance.

Available Colours

#buttons

• Black
• Silver
• Gunmetal
• Blue

Innokin Zlide Vape Tank Features

Child-Proof Sliding Top Fill

Remove the mouthpiece, then slide the top cap to one side to reveal the fill port. Fill with your chosen e-liquid. Slide the cap back, replace the mouthpiece, and the top is locked. The child-proof mechanism is built into the mouthpiece lock, which means the tank will not open accidentally in a pocket or bag. It adds a couple of seconds to refilling, but it removes any risk of a child accessing the e-liquid inside.

Screw-In Coil Replacement

The coil screws into the base of the tank from below. To change it, unscrew the base, pull the old coil out, and screw the new one in. The e-liquid stays in the tank during the swap. No draining, no spills, no wasted liquid. Prime the new coil with a few drops and you are ready to vape within five minutes.

Innokin Z Coil Range

The tank ships with two coils. The 0.48Ω Plex3D mesh coil is pre-installed and works well with High-VG E-Liquids for a warmer, slightly airier restricted DTL draw. The 1.6Ω Kanthal coil is in the box for a tighter MTL hit at lower wattage, paired with 50/50 or higher-PG e-liquids. Beyond these two, the Zlide accepts the full Z coil range sold separately, including the 0.8Ω and 1.2Ω options that sit between the two included coils in terms of draw and warmth.

Adjustable Airflow

The airflow control ring at the base of the tank adjusts the draw from tight MTL to a slightly more open restricted DTL. For ex-smokers, closing the airflow and using the 1.6Ω coil gives a draw that closely mimics a cigarette. Opening it up with the 0.48Ω mesh coil gives a looser, more flavourful vape with a bit more vapour.

Pyrex Glass and Compact Design

The tank section is Pyrex glass, which resists cracking from heat and is chemically inert with e-liquid ingredients. The 22mm diameter fits flush on most slim mods and pen-style devices without overhang. A spare glass section is included in the box.

What E-Liquid to Use

For the 1.6Ω MTL coil, 50/50 VG/PG E-liquids or higher-PG blends work best. Nic salts also work well with this coil, up to 20mg. For the 0.48Ω Plex3D mesh coil: high-VG e-liquids (60/40 or thicker). Stick to freebase nicotine at 6mg or lower with this coil.

For the other Z coils (0.8Ω, 1.0Ω, 1.2Ω): 50/50 e-liquids. For the lower-resistance Z coils (0.3Ω, 0.5Ω): high-VG e-liquids, 6mg or lower. Browse our e-liquid range at Pirate Vapes for 50/50 liquids and shortfills that pair well with the Zlide.

How to Set Up the Innokin Zlide

1. Unscrew the tank base to ensure the pre-installed 0.48Ω mesh coil is screwed firmly into place.

2. Add 3–4 drops of e-liquid directly onto the exposed cotton openings on the side of the coil.

3. Reassemble the base securely and screw the tank onto your mod’s 510 connection.

4. Pull the removable mouthpiece straight up to disengage the child-proof lock mechanism.

5. Slide the top cap back to reveal the port, fill the 2ml tank, slide it shut, and reinsert it. Let the tank sit completely still so the dense cotton inside the Z-coil saturates fully.

6. Adjust your mod's power (e.g., 10–15W for the spare 1.6Ω coil), dial in the bottom airflow ring, and enjoy.

What’s in the Box

• 1 x Innokin Zlide Vape Tank

• 1 x Plex3D 0.48Ω Kanthal Mesh Coil (pre-installed)

• 1 x 1.6Ω Kanthal Coil

• 2 x Mouthpieces

• 1 x Replacement Pyrex Glass Section

• 1 x Replacement Silicone Seal

• 1 x Pack of Replacement O-Rings

• 1 x User Manual (with QR code for tutorial videos)

Compatibility

The Innokin Zlide uses a standard 510 threaded connection. It fits the vast majority of vape mods and pen-style devices. The 22mm diameter means it sits flush on slim mods like the Innokin Coolfire Z50, Coolfire Z60, Kroma-R, and Adept without overhang.

The tank uses Innokin Z coils (Zenith coils). Not Innokin T18 coils, not Innokin EQ coils. Make sure you order the correct coils when restocking. Pirate Vapes stocks the Zlide tank and Innokin Z Replacement Coils together in our Innokin range.

About Innokin

Innokin has been making vape hardware since 2011. The Endura T18 was one of the first widely recommended starter kits in the UK, and the Zenith tank became a benchmark for MTL vaping. The Zlide carries that same design philosophy: simple to use, reliable, and focused on flavour.

It was built as a more affordable option alongside the Zenith, sharing the same Z coil system while dropping the liquid shut-off valve to reduce cost. For an MTL vaper who wants a proven tank with a wide coil selection and a clean coil-swap system, it is one of the strongest options in the Innokin Range.

Stock Up and Save

The tank ships with two coils, but they will not last forever. Having a pack of Innokin Z coils ready means you are never stuck on a burnt coil with a tank you cannot use. Add a bottle of 50/50 or a nic salt alongside the coils and your order is sorted.

Pirate Vapes sends everything in plain packaging, with tracked delivery to your door, age-verified checkout, and 18+ delivery. Crew Rewards points go on every order. If you want coils arriving without thinking about it, set up The Crow’s Nest at Pirate Vapes, and they come on repeat with a saving.

Conclusion

22mm MTL tank with child-proof sliding top fill. 2ml capacity. Stainless steel and Pyrex glass. Compatible with the full Innokin Z coil range. Two coils included: 0.48Ω Plex3D mesh (pre-installed) and 1.6Ω Kanthal.

Screw-in coil changes without draining the tank. Adjustable airflow. 510 connection. Available in five colours. Designed with Phil Busardo and Dimitris Agrafiotis. Grab one from Pirate Vapes with tracked, age-verified UK delivery.

FAQs

What is the e-liquid capacity?

2ml (TPD compliant).

Which coils does it use?

Innokin Z coils (Zenith coils). The full range is compatible: 0.3Ω, 0.48Ω, 0.5Ω, 0.8Ω, 1.0Ω, 1.2Ω, and 1.6Ω. Two coils ship in the box.

Can I use nic salts in the Zlide?

Yes. Nic salts work well with the higher-resistance coils (0.8Ω, 1.0Ω, 1.2Ω, 1.6Ω). Do not use nic salts with the lower-resistance coils (0.3Ω, 0.48Ω, 0.5Ω).

Will it fit my mod?

If your mod has a 510 connection, it will work. The 22mm diameter fits flush on most slim mods and pen-style devices.

Is this an MTL or DTL tank?

Primarily MTL. The 0.48Ω mesh coil with the airflow opened gives a restricted DTL draw, but the tank is designed and optimised for mouth-to-lung vaping.

Is the top fill child-proof?

Yes. The mouthpiece must be removed before the top cap slides open. With the mouthpiece in place, the cap is locked.

Can I change the coil without emptying the tank?

Yes. The coil screws in from the base. You can swap coils without opening the top or draining e-liquid.

What colours are available?

Black, Silver/Stainless Steel, Gunmetal, Blue, and Coral Pink.

Is a spare glass included?

Yes. A replacement Pyrex glass section, silicone seal, and O-rings are all included in the box.

Does Pirate Vapes stock the replacement coils?

Yes. Innokin Z coils are in our Innokin range at Pirate Vapes.
